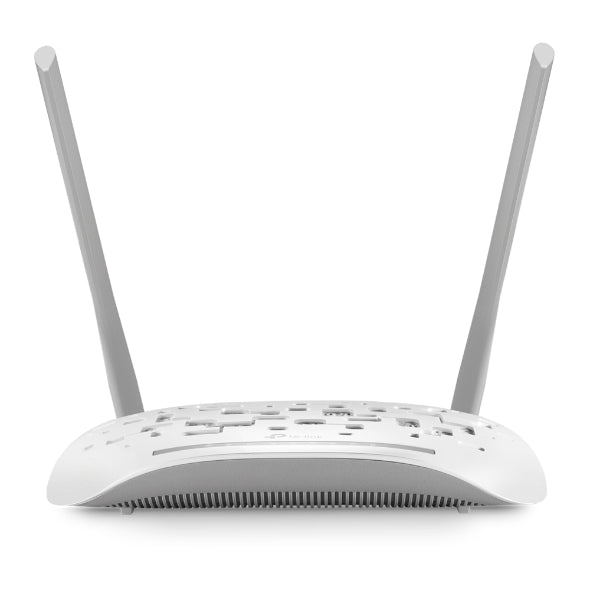

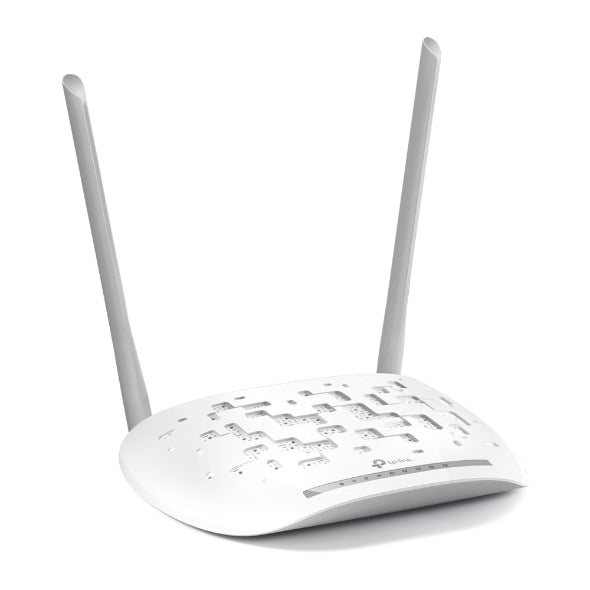

TP-Link 300Mbps Wireless N ADSL2+ Modem Router

TP-Link 300Mbps Wireless N ADSL2+ Modem Router

$35.00 USD
$35.00 USD
Sale Sold out
  • All-in-one functionality: It removes the need for multiple devices by integrating an ADSL2+ modem, NAT router, 4-port switch, and 300 Mbps wireless access point.
  • 300 Mbps wireless N speed: The router uses the 2.4 GHz band for speeds up to 300 Mbps, which is suitable for online gaming, HD video streaming, and other bandwidth-intensive tasks.
  • Wireless security: It features WPA/WPA2 encryption and a WPS (Wi-Fi Protected Setup) button for easy, one-touch wireless security setup.
  • Strong coverage: Equipped with two external 5 dBi high-gain antennas, the router provides a strong and stable Wi-Fi signal to cover your home or office.
  • Advanced security: The device includes a NAT and SPI (Stateful Packet Inspection) firewall to protect against Internet attacks. It also offers filtering based on MAC addresses, IP addresses, and URLs.
  • Traffic management: A built-in Quality of Service (QoS) engine helps prioritize Internet traffic to ensure smooth performance for applications like IPTV and online gaming.
  • Easy setup: A multilingual Easy Setup Assistant and an intuitive web interface guide users through a quick installation and configuration process.

Specifications

Feature  Details

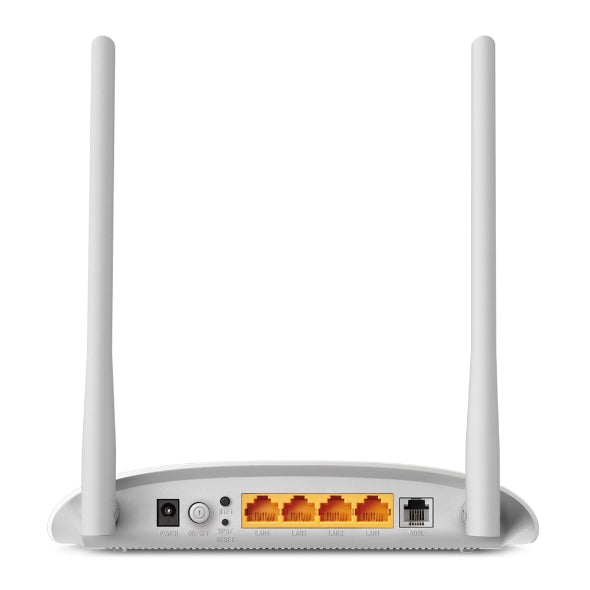

Interface 4 x 10/100 Mbps RJ45 ports (LAN), 1 x RJ11 port (ADSL)
Antenna 2 x 5 dBi omnidirectional, fixed external antennas
Wireless standards IEEE 802.11n, 802.11g, 802.11b
Frequency 2.400–2.4835 GHz
ADSL standards Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1, G.992.2, G.994.1, G.992.5
Maximum ADSL speed 24 Mbps downstream, 1 Mbps upstream
Dimensions 7.7 x 5.1 x 1.4 inches (195 x 130 x 35 mm)
Buttons Power On/Off, WPS, Wi-Fi On/Off

How to set up the TD-W8961N
  1. Connect the hardware:
    • Use the provided splitter to connect the modem router to your phone jack. The splitter has a port for the wall jack, one for a phone, and a "MODEM" port for the router's ADSL port.
    • Plug the power adapter into the router and a power outlet.
  2. Access the setup page:
    • Connect your computer to one of the router's LAN ports with an Ethernet cable, or connect to the default Wi-Fi network listed on the router's sticker.
    • Open a web browser and enter http://tplinkmodem.net or 192.168.1.1 in the address bar.
    • Log in using the default username and password, which is admin for both.
  3. Run the Quick Setup Wizard:
    • The wizard will guide you through the process. You will need to enter the connection details provided by your Internet Service Provider (ISP), such as VPI/VCI and your username and password.
  4. Secure your network:
    • During the setup, create a new wireless network name (SSID) and a strong password for your Wi-Fi.
    • For WPS-compatible devices, you can press the WPS button on the router to connect them instantly.
